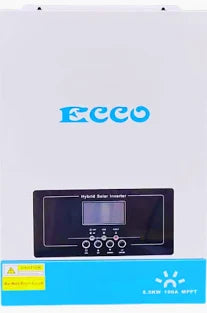

ECCO 5.5KW 48V 100A MPPT Hybrid Solar Inverter

ECCO 5.5KW 48V 100A MPPT Hybrid Solar Inverter

High Voltage VDC500V 5.5KVA/5500W 100A Pure Sine Wave Solar Inverter Features - Pure Sine Wave Solar Inverter - Output Power Factor 1 - High PV Input Voltage Range (120VDC - 500VDC) - Built-in 100A MPPT Solar Controller - Supports Multiple Output Priority: UTL, SOL, SBU, SUB - Parallel Operation with Up to 12 units (Parallel Version) - Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version) - Supports Wireless Parallel, Without Extra Sharing Current Cable - RS485 Communication for BMS - Wifi Monitoring - Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle Specifications:- Inverter Mode - Rated Power: 5500VA / 5500W - DC Input: 48VDC, 127A - AC Output: 230VAC, 50/60Hz, 23.9A AC Charger Mode - AC Input: 230VAC, 50/60Hz, 40A - DC Output: 54VDC - Max. Charge Current(AC): 60A Default 30A - Max. Charge Current(PV+AC): 100A - AC Output: 230VAC, 50/60Hz, 23.9A Solar Charge Mode - Max. PV Array Power: 5500W - Min. Solar Voltage: 120VDC - Max. Solar Voltage (VOC): 500VDC - Max. MPPT Charge Current: 100A Ingress Protection: IP21 (Indoor Use) Dimensions ; 38 x 55 x 20 cm Weight : 9.65kg It is recomended to use ECCO Batteries and Solar Panels for Quality Garanteed Results. Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations. What's in the box 1 x ECCO 5.5KW Inverter 1 x Wifi Monitoring Module 3 x Connecting Cables 1 x User Guide
