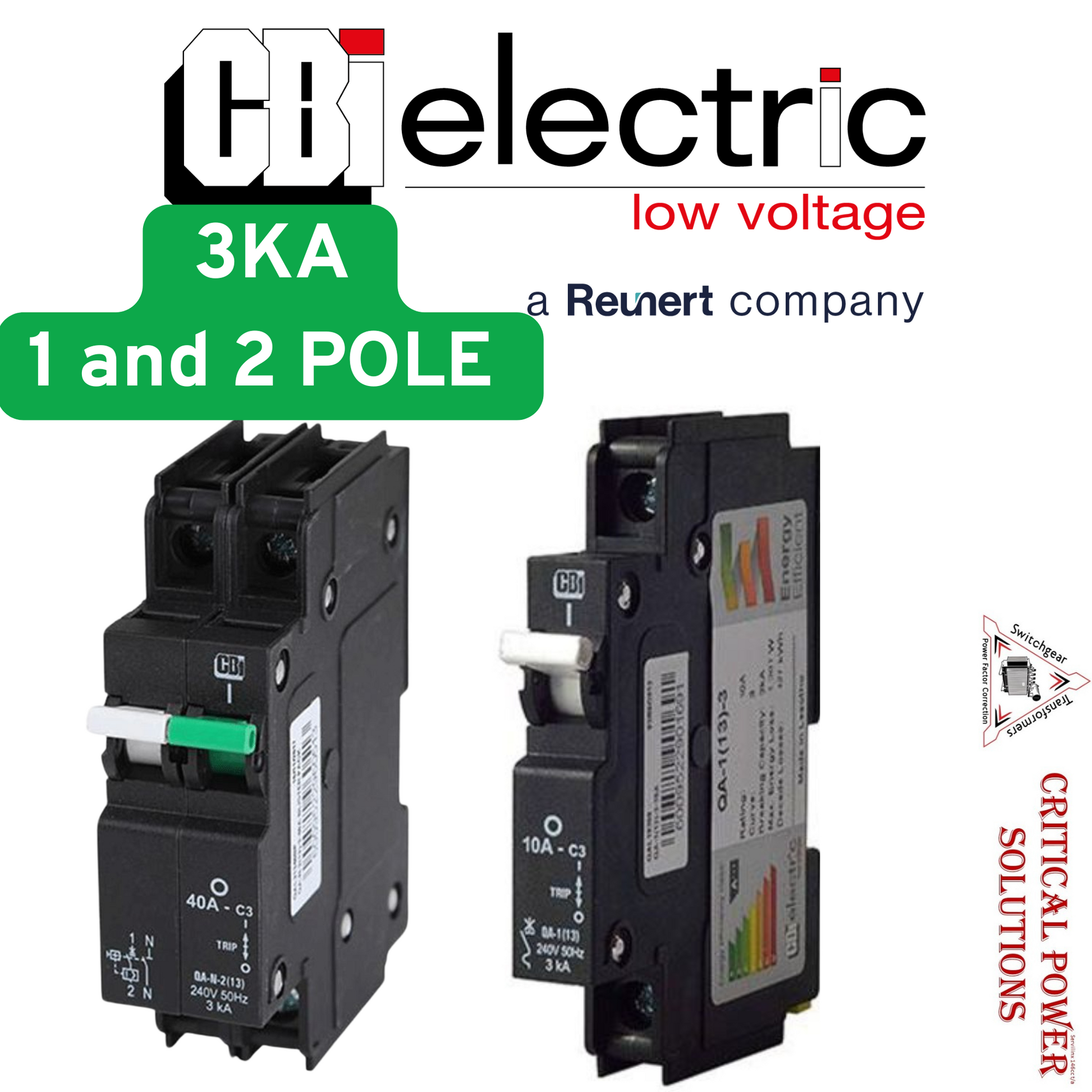

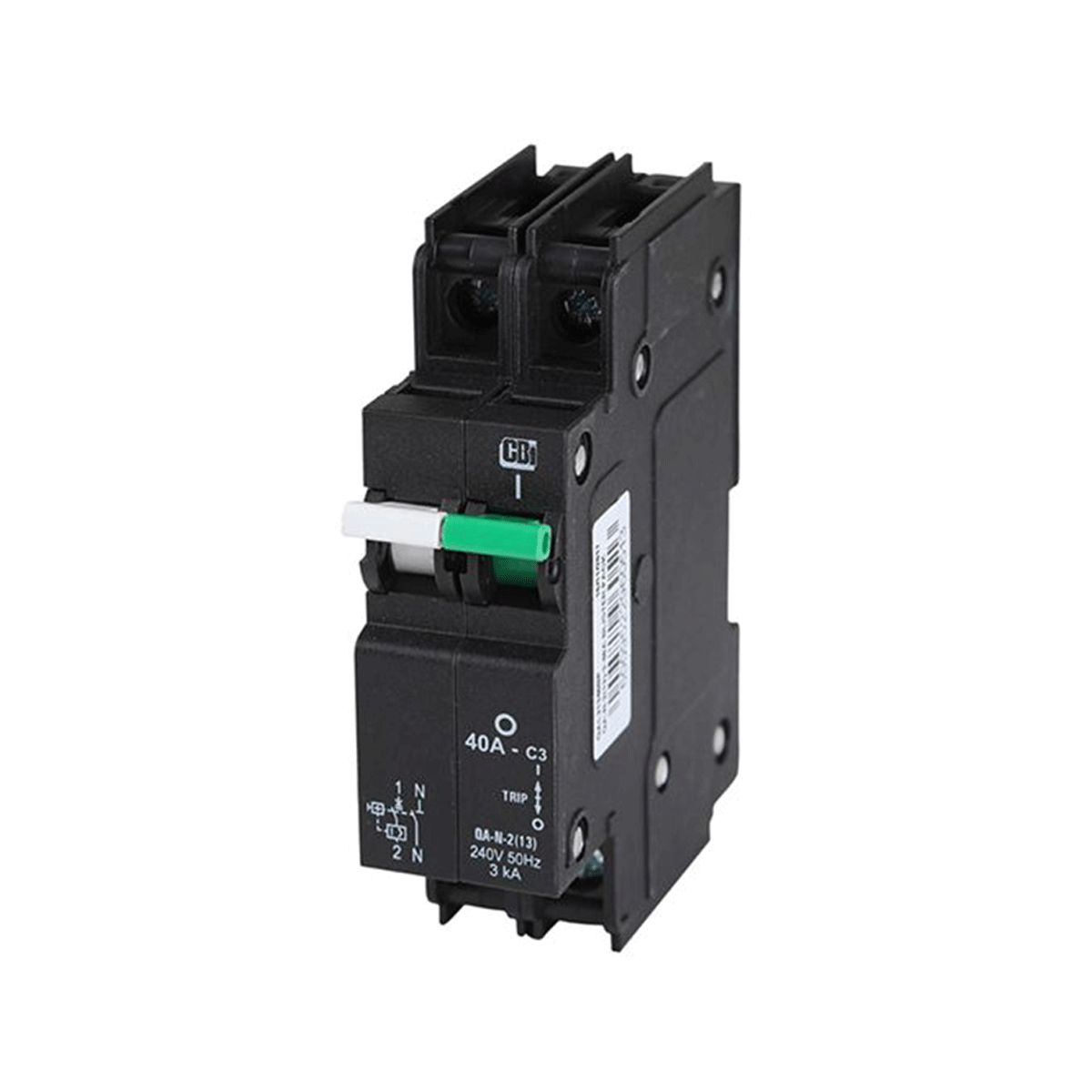

CBI Circuit Breaker 2 Pole 1P+N Curve 1 5A 3kA 240V QFA18105
CBI Circuit Breaker 2 Pole 1P+N Curve 1 5A 3kA 240V QFA18105
Couldn't load pickup availability
CBI Circuit Breaker 2 Pole 1P+N Curve 1 5A 3kA 240V QFA18105
- AC Circuit Breakers QFA18105
- Hydraulic-magnetic technology
- Available in Ratings 1A to 60A breakers to meet your specific needs
- Trip Indication with mid-trip position
- Reset immediately after overload
- Shell design allows for easier installation onto the bus bar.
• AC branch circuit protection • Switch disconnector (SANS 60947-3) • Telecom / datacom equipment • Lighting control • UPS equipment • Alternative energy equipment • Mobile power generation equipment • Railway signalling equipment • Residential equipment • Industrial equipment
Handle lock - QFAP001 • Surface mounting clips - SAAX000 • Busbar - SABBM54 • 57 mm escutcheon blank - 2305608 • 57 mm safety blank - SAEB000
TECHNICAL DATA
| Colour: | Black |
| Material: | Plastic |
| Handle Colour: | White and Green Neutral Handle |
| Mounting Type: | Mini Rail |
| Number of Modules: | 2 |
| Poles: | 1 + Neutral |
| Curve: | 3 |
| Protection Type: | Overload and short circuit protection |
| Escutcheon: | 57mm |
| Current: | Available ratings range from 1A to 60A |
| kA Rating: | 3kA |
| Height: | 92.8mm |
| Width: | 26mm |
Product Type Circuit Breaker Approvals VC 8036 (SANS 556-1) Number of Poles 1 2 (1+N) 2 3 4 (3+N) Operating Voltages 240 Vac 415 Vac Minimum Current Rating 5 A 5 A Maximum Current Rating 60 A 50 A Specific Ratings (Verify Certification) 5, 6, 7, 8, 9, 10, 12, 15, 16, 20, 25, 30, 35, 40, 45, 50, 60 A Ultimate S/C Breaking Capacity (Icu) 2.5 kA Product Type QA(13)
Product Type Switch Disconnector Approvals SANS 60947-3 Number of Poles 1 2 (1+N) 3 4 (3+N) Operating Voltages 240 Vac 415 Vac Current Rating 63 A Rated S/C Withstand Capacity (Icw) 6 kA 50 ms
